Horizontal Grid Structure

Vertical Layer Structure

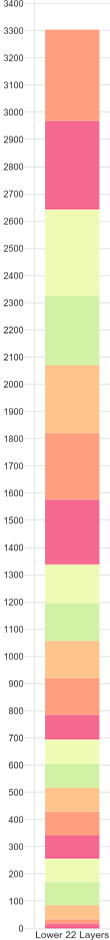

2019 APR-OCT (txe_4km domain)

WRF Layer	Sigma Level	Top (m AGL)	Center (m AGL)	Thickness (m)
44	0.000	20508	19978	1060
43	0.010	19448	18803	1290
42	0.025	18158	17478	1359
41	0.045	16799	16248	1102
40	0.065	15697	15120	1154
39	0.090	14543	14050	986
38	0.115	13557	13043	1028
37	0.145	12529	12076	905
36	0.175	11624	11152	943
35	0.210	10681	10200	962
34	0.250	9719	9286	866
33	0.290	8853	8459	788
32	0.330	8064	7702	725
31	0.370	7340	7045	590
30	0.405	6750	6472	554
29	0.440	6195	5934	523
28	0.475	5672	5425	495
27	0.510	5177	4975	405
26	0.540	4772	4578	388
25	0.570	4384	4197	374
24	0.600	4010	3830	360
23	0.630	3650	3476	348
22	0.660	3302	3134	336
21	0.690	2966	2803	326
20	0.720	2640	2483	316
19	0.750	2325	2197	256
18	0.775	2069	1944	250
17	0.800	1819	1697	244
16	0.825	1575	1455	239
15	0.850	1336	1265	141
14	0.865	1195	1126	139
13	0.880	1056	987	137
12	0.895	919	851	136
11	0.910	783	738	90
10	0.920	693	649	89
9	0.930	604	560	88
8	0.940	516	472	88
7	0.950	429	385	87
6	0.960	342	298	86
5	0.970	255	212	86
4	0.980	170	127	85
3	0.990	84	59	51
2	0.996	34	25	17
1	0.998	17	8	17
0	1.000	0	0	0

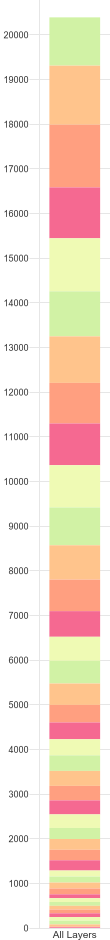

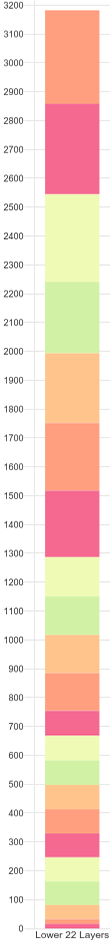

2019 APR-OCT (nca_12km domain)

WRF Layer	Sigma Level	Top (m AGL)	Center (m AGL)	Thickness (m)
44	0.000	20393	19853	1081
43	0.010	19312	18651	1323
42	0.025	17989	17288	1403
41	0.045	16587	16017	1140
40	0.065	15447	14853	1188
39	0.090	14259	13755	1008
38	0.115	13250	12730	1042
37	0.145	12209	11755	908
36	0.175	11301	10833	935
35	0.210	10366	9892	946
34	0.250	9419	8996	847
33	0.290	8572	8188	769
32	0.330	7803	7450	706
31	0.370	7097	6811	574
30	0.405	6524	6255	538
29	0.440	5985	5732	508
28	0.475	5478	5238	480
27	0.510	4998	4801	392
26	0.540	4605	4417	376
25	0.570	4229	4049	361
24	0.600	3868	3694	348
23	0.630	3520	3352	336
22	0.660	3184	3022	324
21	0.690	2860	2703	314
20	0.720	2546	2394	304
19	0.750	2242	2119	247
18	0.775	1995	1875	241
17	0.800	1754	1637	235
16	0.825	1519	1404	230
15	0.850	1289	1221	136
14	0.865	1153	1086	134
13	0.880	1019	953	132
12	0.895	887	821	131
11	0.910	756	713	86
10	0.920	670	627	86
9	0.930	584	541	85
8	0.940	499	456	84
7	0.950	414	372	84
6	0.960	330	288	83
5	0.970	247	205	83
4	0.980	164	123	82
3	0.990	82	57	49
2	0.996	33	24	16
1	0.998	16	8	16
0	1.000	0	0	0
